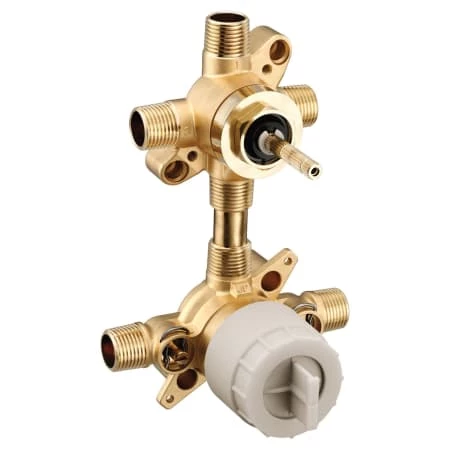

Moen M-Core 3 or 6 Function 1/2″ CC and IPS Diverter Valve with Stops

M-CORE™ is shower design on your time. This valve system is simpler and faster to install, and offers additional functionality with desired style choices to create an ideal shower environment. Moen has conducted extensive research to create M-CORE, and what drives the design is a passion to make the workday more streamlined for plumbers and to give more freedom in showering functionality and design whether in new construction or remodel projects. Homeowners and designers will enjoy M-CORE’s improved style and finish options including perfectly matching mixing and transfer trim, and attention to detail that reflects a desire for a dream bathroom.

Moen U362CIS Features:

• Integrated M-CORE Transfer Valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valve’s flow from two outlets to three outlets
• When using 2 showering devices, the valve has 2 independent and 1 shared functions
• When using 3 showering devices, the valve has 3 independent and 3 shared functions
• IMPORTANT: When using 3 Showering Devices, transfer valve cartridge must be modified. Simple Cartridge Modification changes the valves flow from 2 outlets to 3 outlets. See Transfer Valve Instructions for additional information
• IMPORTANT: When using 2 Showering Devices, designated outlet 3 must be CAPPED. Caps are not included with the transfer valves
• M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
• Brass construction
• 1/4 turn stops on each inlet
• Transfer valve outlets match inlet connection type
• Not tub outlet
• Supplied flush plug allows testing up to 200 PSI with air (300 PSI water)

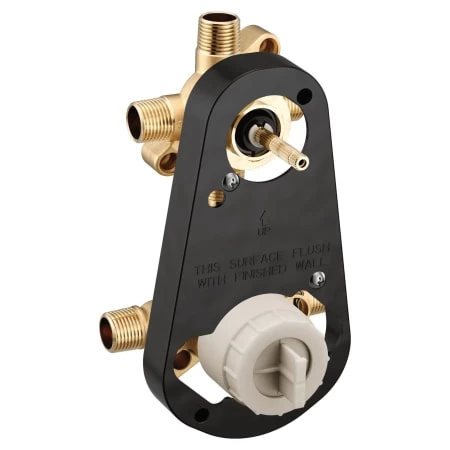

• Installation in thin or thick wall applications
• Mixing cartridge is supplied in the M-CORE 3-series trim kit
• Includes 3 function / 6 function ceramic disk cartridge for transfer valve
• Third party certified to meet ASME A112.18.1/CSA B125.1, and all applicable requirements referenced therein
