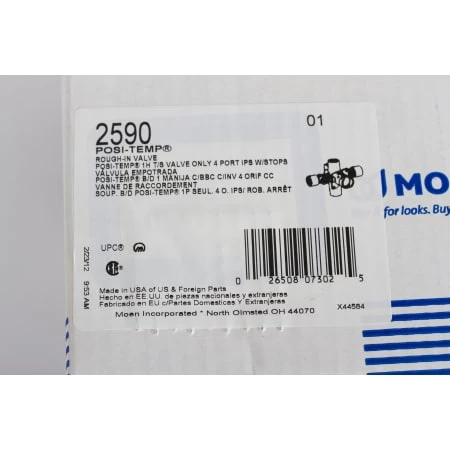

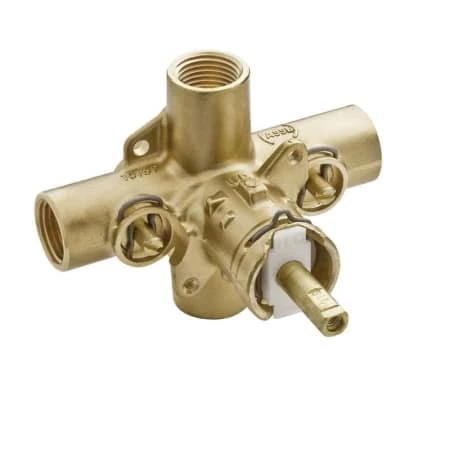

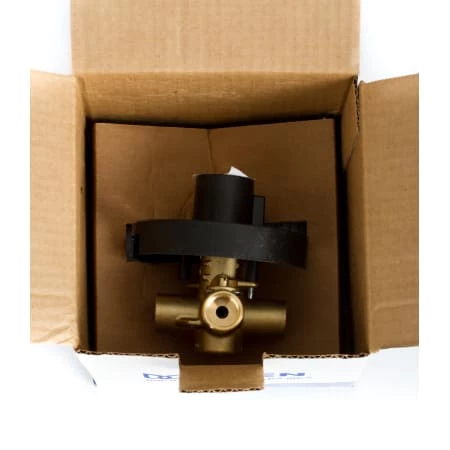

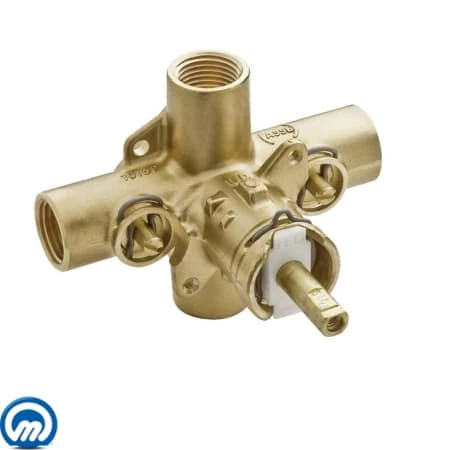

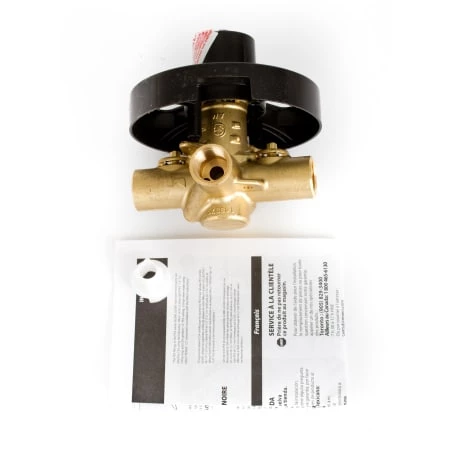

Moen 1/2 Inch IPS Posi-Temp Pressure Balancing Rough-In Valve (With Stops)

Product Features:

• Valve is constructed of brass ensuring durability and dependability
• Covered under Moen’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
• Features Moen’s M-PACT® common valve system
• Posi-Temp® pressure balancing valve maintains water pressure and controls temperature
• Designed for IPS inlet / outlet connections
• Integrated service stops allow you to turn water off at the valve
• Back-to-back installation capabilities
• Sturdy mounting bracket included with valve
• Note: This is the rough-in valve only – valve trim is required to complete product

Product Technologies / Benefits:

M-PACT® Common Valve System: Designed with the future in mind, M-PACT® allows you to install one valve that will make future renovations painless. Upgrade your trim at any point in the decorating or construction process – or even years down the road – without replacing any faucet plumbing.

• Posi-Temp® Valve: A pressure balancing valve that maintains water temperature within 3° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-Temp® offers the best water flow available for any comparable valve.

Product Specifications:

• Connection Size: 1/2″
• Connection Type: IPS
• Cartridge Included: 1222
• Number of Ports: 4

Variations:

• 2590: This model
• 2510: IPS connections, no stops
• 2520: Sweat (CC) connections, no stops
• 2570: Sweat (CC) connections, with stops
• 2580: PEX connections, no stops

Different Types of Valve Inlet / Outlet Connections:
