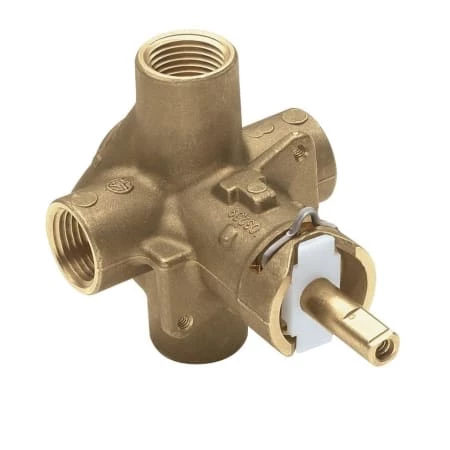

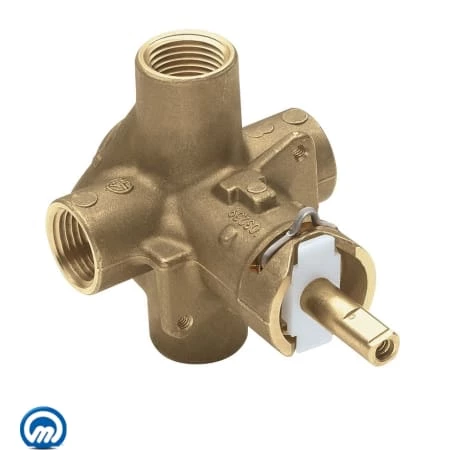

Moen 1/2 Inch IPS Posi-Temp Pressure Balancing Rough-In Valve (No Stops)

Product Features:

• Valve is constructed of brass ensuring durability and dependability
• Covered under Moen’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
• Features Moen’s M-PACT® common valve system
• Posi-Temp® pressure balancing valve maintains water pressure and controls temperature
• Designed for IPS inlet / outlet connections
• Back-to-back installation capabilities
• Sturdy mounting bracket included with valve
• Note: This is the rough-in valve only – valve trim is required to complete product
• Sold Individually

Product Technologies / Benefits:

M-PACT® Common Valve System: This innovation from Moen gives the homeowner the up-most functionality and convenience when it comes to bathroom faucets. Designed to be a catch-all valve system, once M-PACT® is installed you can upgrade the style of the lavatory or shower faucet without replacing nay of the faucet plumbing.

• Posi-Temp® Valve: A pressure balancing valve that maintains water temperature within 3° F. Built-in temperature limit stops allow you to control how far the handle rotates, in effect controlling the range of water temperature. The Posi-Temp® offers the best water flow available for any comparable valve.

Product Specifications:

• Connection Size: 1/2″
• Connection Type: IPS
• Cartridge Included: 1222
• Number of Ports: 4

Variations:

• 62300: This model
• 62320: Sweat (CC) connections, no stops
• 62330: CPVC connections, with stops
• 62340: CPVC connections, no stops
• 62360: PEX connections, with stops
• 62365: Cold expansion PEX connections, no stops
• 62370: Sweat (CC) connections, with stops
• 62380: PEX connections, no stops
• 62385: Cold expansion PEX connections, with stops
• 62390: IPS connections, with stops

Different Types of Valve Inlet / Outlet Connections:
