Kohler Rite Temp Pressure-Balancing Valve Body and Cartridge Kit with Service Stops – Supplied Loose

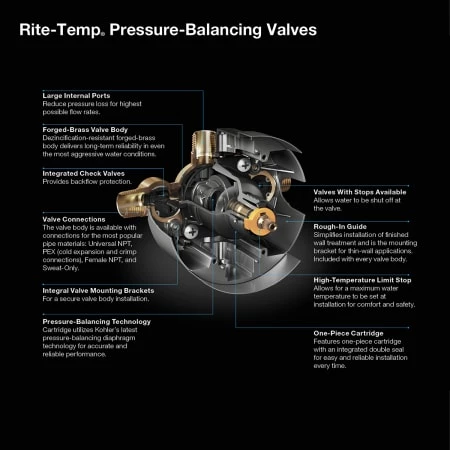

FEATURES

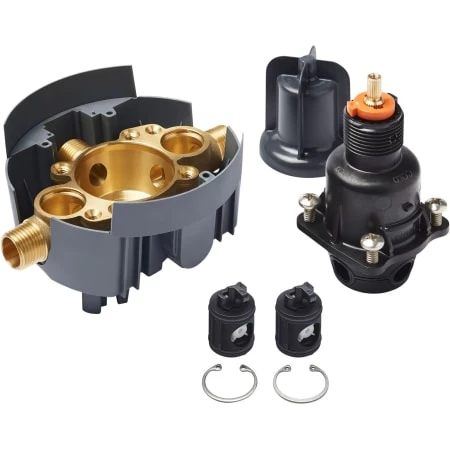

• Includes valve body, pressure balance cartridge, rough-in guide and mud guard
• 1/2″ Universal NPT & direct sweat inlets & outlets, with stops
• Service stops supplied loose (not factory installed in valve body) – ready for making sweat connections to valve inlets
• Service stops include integral check valves
• 5.0 gpm (18.9 l/min) maximum flow rate at 45 psi
• Single lever design cycles from off through cold to hot
• Provides temperature regulation and automatic anti-scald protection
• One piece cartridge design simplifies installation and maintenance
• Adjustable high temperature limit stop to control maximum water temperature
• Requires valve trim to complete installation (sold separately).

Material

• Forged De-zincification Resistant Brass body provides long term reliability and resistance to aggressive water conditions

Technology

• Pressure-balancing diaphragm technology maintains outlet temperature within +/- 3 degrees Fahrenheit during water pressure fluctuations

Installation

• Designed for use in standard, back to back and thin wall installations
• Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
• Cartridge is reversible for installations where hot and cold supplies are reversed.
• Rough-in guide designed for both standard and thin wall installations
• Installed valve rough-in can be flushed and pressure tested to 150psi max (air or water) without cartridge, using K-10351 Test Cap
