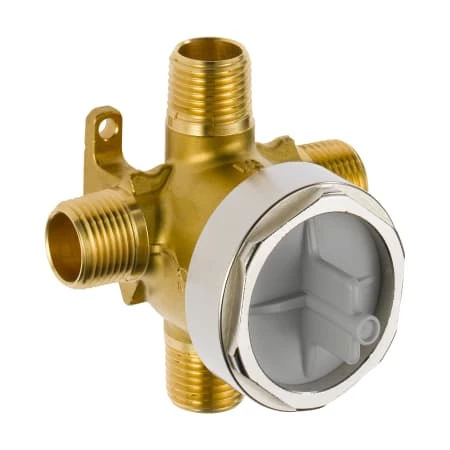

Brizo Universal Diverter Rough-In Valve – For Use with All Brizo 3 or 6 Function Diverter Trims

Product Features:

• Covered under Brizo’s limited lifetime warranty for residential installations and 5-year limited warranty for commercial installations
• Valve is constructed of forged brass ensuring durability and dependability
• Controls direction of water from mixing valve to custom shower systems
• Does not control volume of water – that is done at the mixing valve
• For use with Brizo 3 function and 6 function diverter trims
• Accepts multiple diverter cartrides – diverter trim ships with shared function cartridge
• RP72123 – non shared 2 function cartridge for 2 applications (optional, not included)
• RP72124 – non shared 3 function cartridge for 3 applications (optional, not included)
• RP51918 – shared 3 function cartridge for 2 applications (included with diverter trim)
• RP51919 – shared 6 function cartridge for 3 applications (included with diverter trim)
• Heat-resistant pressure test cap for air/water testing before cartridge is installed
• 0.5-in inlet/outlet connections
• Six function diverter valve with 3 individual positions, 3 shared positions
• Use plug (included) in right outlet for three function trims (2 individual positions, 1 shared position)
• Heat-resistant pressure test cap for air/water testing before cartridge is installed
• Note: this is the rough-in only – valve trim (which includes the cartridge) required to complete
• Designed for use with U.S. plumbing connections
• Extra secure mounting assembly
• All necessary mounting hardware included
• Please Note: for 2 applications the Right port MUST be capped

3 Function Diverter – 2 Individual Positions, 1 Shared Position

6 Function Diverter – 3 Individual Positions, 3 Shared Positions
